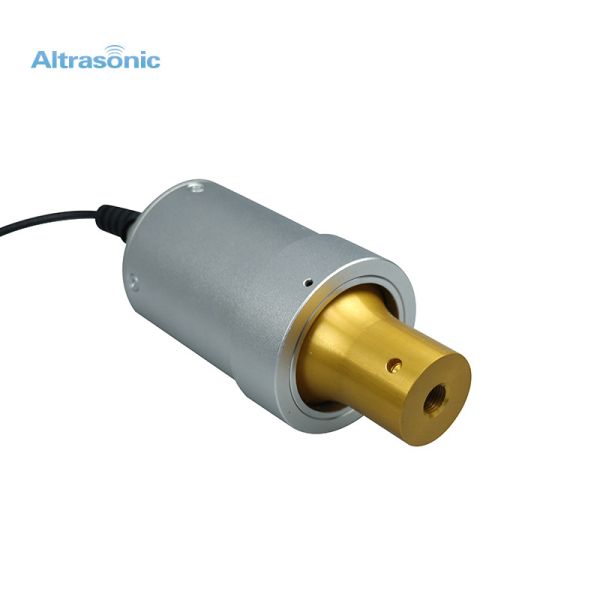

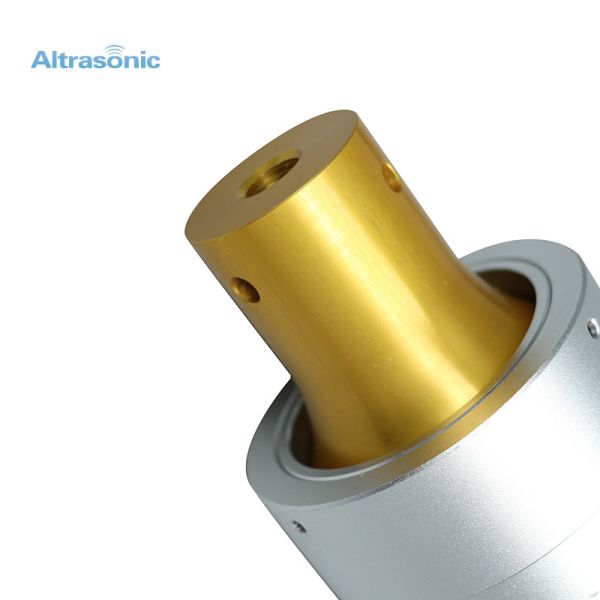

Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type
Specifications:
| Model | HSD41S30 |
| Frequency | 20Khz |
| Output power | 1000-3000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,which can be widely used to do welding in various kinds of industries.
Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Features:
1. Low calorific value.
2. Good thermal stability.
3. The frequency is consistent with the static capacitance.
4. The resonance impedance is low.
5. Long average life.
6. Can be used in a variety of ultrasonic welding equipment and cleaning equipment
